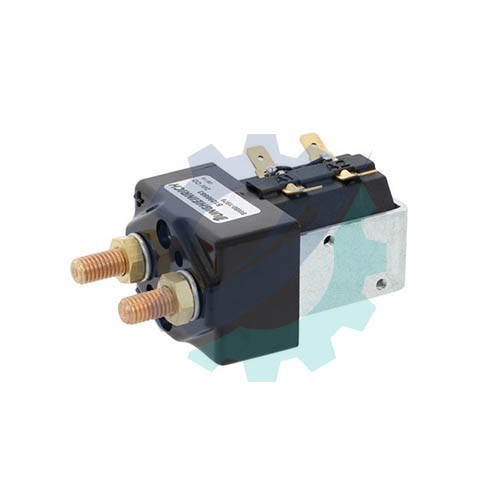

51296863 DC 24V Jungheinrich Contactor

Used for:

EMC 110 (US) 51049451 3.09 - 1
EMC 110 51049452 3.09 - 1
ERE 225 51054860 9.07 - 1
EJE 116/118/120 51056820 4.07 - 6.18 1
EJE 116/118/120 (USA) 51056822 9.07 - 1
EJE 220/225 51056825 5.07 - 1
EJE 220/225 (USA) 51056827 8.07 - 1
EZS 350 51072223 9.07 - 7.09 1
EJC 110/112 51080469 9.07 - 8.12 1
WP 10/12 51080496 9.07 - 4.08 1
EJE C20 51080723 10.07 - 1
PW23 51080763 9.07 - 1
2WP4500 51080764 9.07 - 1
PW30 51080765 8.07 - 1
2WP6000 51080766 8.07 - 1
EJC 110/112 51081266 8.07 - 10.07 1
WP 10/12 51081267 8.07 - 10.07 1
ECE 310 51083095 1.08 - 10.11 1
ECE 225 HP 51083359 12.07 - 10.11 1
EJE 116/120 (Qingpu) 51089555 10.07 - 8.09 1
EJC 110/112 (Qingpu) 51094342 7.08 - 9.09 1
EJD K18 51108145 6.08 - 1
EJE 235 51109549 5.08 - 1
PWF11 51115357 3.09 - 1
EMC 110 (2SF2200) 51115358 3.09 - 3.10 1
EMC B10 51115383 3.09 - 1
EMC B10 (US) 51115385 3.09 - 1
PWT11 51115386 3.09 - 1
EMC B10 (2SS2200) 51115387 3.09 - 1
EZS 130 51115660 6.08 - 7.09 1
ERE 225 KP 51117301 7.08 - 1
ECE 220/225 51124236 8.09 - 7.11 1
EJD 220 51132959 1.10 - 1
ERD 220 51133400 6.10 - 1
EJE 116n/120n 51148851 9.09 - 1.18 1
EJC 110n/112n 51157342 10.09 - 1.18 1
EZS 350/ EZS C40 51159730 8.09 - 10.11 1
EZS 130 51159731 8.09 - 10.11 1
ECE 320 51159732 8.09 - 10.11 1
EMC 110 RK 51198628 1.11 - 1
EJC B12/14/16 51209523 4.11 - 1
ECE 220/225 51220150 8.11 - 1
ECE 225 XL 51220151 8.11 - 1
EJE120N 51226652 1.11 - 2.20 1
ECE 320 51235131 11.11 - 1
ECE 310 51235242 1.11 - 1
ECE 225 HP 51235257 11.11 - 1
EZS 350/ EZS C40 51235506 11.11 - 1
EZS 130 51235511 11.11 - 1
EJC 110/112/212 51236631 8.11 - 9.19 1
EJE 112i 51238480 11.11 - 6.14 1
ECE 220/225 (US) 51263523 1.14 - 1
ERC 215a 51267994 11.12 - 1
EJC 220 51286329 9.12 - 1
ECD 220 51297189 11.12 - 1
EJE 220r/225r 51303214 5.15 - 1
EJE 230 51303252 4.13 - 1
ERE 225a 51307572 7.13 - 1
GTP 51341552 4.14 - 1
EJR 120n 51364828 2.14 - 1.18 1
ECE 220/225/227 51365101 5.15 - 1
ECE 225 HP / HP-LJ 51374469 5.15 - 1
EJE 112I / 114I 51386655 8.14 - 1
EZS 570/ 580/ 590 51413276 4.15 - 1
ECE 220/225/227 (US) 51416513 5.15 - 1
EMC 105/110/B10 51417274 11.14 - 1.22 1
PWF11/PWT11 51417278 11.14 - 1.22 1
EMC 105/110/B10 US 51417285 11.14 - 1.22 1
EMC 110/B10 51417286 11.14 - 1.22 1
EMC 110 RK 51427437 1.15 - 1
EJG 106-112 51438063 1.16 - 1
ECE 225 HP / HP-LJ (US) 51468278 5.15 - 1
ECE 310/320 51493980 8.15 - 1
ECE 310/320 (US) 51493982 8.15 - 1
ECE 310/320 HP/HP-LJ 51494046 8.15 - 1
ECE 310/320 HP/HP-LJ (US) 51494049 8.15 - 1
ERE 120 / 125 / 225 51527542 10.16 - 1
ERE 120 / 125 / 225 (US) 51527543 10.16 - 1
EJC B20 51533035 1.16 - 1
EJE C20 (US) 51551697 8.16 - 1
EZS 350 51552162 9.16 - 1
ECD 320 51553725 8.16 - 1
EJC 112Z 51554663 8.16 - 1.22 1
EJE 114 / 116 / 118 / 120 51564144 3.18 - 1
EJE 120 US 51564145 3.18 - 1
PW23P 51579135 3.18 - 1
2WP4500 51579141 3.18 - 1
EKM 202 51589407 2.17 - 1
ERD 120 / 220 51618167 11.17 - 1
ECE 230 51636964 9.17 - 1
EJE 222/225 51650144 8.18 - 1
EJE 225 (USA) 51650145 8.18 - 1
PW30P 51650146 8.18 - 1
2WP6000 51650152 8.18 - 1
EJE C20 51653193 9.18 - 1
EJE C20 (US) 51653194 9.18 - 1
ESE 120 51654527 12.17 - 1
EKM 202 (2018) 51660956 8.18 - 1
ESD 120 51664709 2.18 - 1
EZS 350a 51676340 4.18 - 1
ERC/ERC-B 212 / 214 / 216 51679610 9.18 - 1
ERC/ERC-B 212 / 214 / 216 US 51679612 12.18 - 1.22 1
ERC 220 / 212z / 214z / 216z 51679771 11.18 - 1
ERC 214z / 216z US 51693149 11.18 - 1
EJC 220 /212 / 214 / 216/-z/-b 51731875 6.19 - 1
EJC 212 / 214 / 216 -z/-b (US) 51731877 6.19 - 1
ERC 216zi 51741856 5.19 - 1
ERC 213a 51767303 5.19 - 1
PMWT15/18N 51773080 6.19 - 1
EJE 114-120 fvz 51783095 8.19 - 1
EZS 130 51815830 12.19 - 1
ERC 214i/216i 51815906 2.20 - 1
ERC 214bi/216bi 51816101 8.20 - 1
UPC (2019) 51820876 3.20 - 1
EJE 230-235 51825753 2.20 - 1
ERC 214bi/216bi US 51838883 2.20 - 1
EJD 222 51849205 3.20 - 1
EJE 222R/225R 51861736 3.20 - 1
EMD 118i /EJD 120 51877403 8.20 - 1
ERE 225a 51877884 12.20 - 1
EZS 350/ EZS C40 (US) 51887469 11.11 - 1
EZS 350 (US) 51887740 10.20 - 1
EZS 350a (US) 51887752 4.18 - 1
ESE 120 (US) 51887753 12.17 - 1
EKM 202 (2018) (US) 51887754 8.18 - 1
ERD 220i 51906797 6.21 - 1
ERE 225i 51921872 10.21 - 1
ERE 225i (US) 51921873 10.21 - 1
EJC 112Z 51951689 1.22 - 1
EMC 105/110/B10 51951690 1.22 - 1
PWF11/PWT11 51951691 1.22 - 1
EMC 105/110/B10 US 51951692 1.22 - 1
EMC 110/B10 51951693 1.22 - 1
EKM 202 (2021) 51991715 10.21 - 1
EKM 202 (2021) (US) 51991716 10.21 - 1
ESE 220-230 52312862 11.22 - 1
ESC 214/216Z 52320396 11.22 - 1
ESC 316/316Z 52320397 11.22 - 1
ESD 220 52320398 11.22 - 1

Description:

51238443 El. system, Truck
1 1    51141116 Cable, Power
1.1 1    51042395 Cable, Power / 1U1.L1/2/3-1M1.U/V/W
1.2 1    51188857 Cable, Control
1.3 1    51054491 Bracket
1.4 3    50446660 Tie, Cable / 5x167/ mit "Fuss"
1.5 1    ( 20 ) 50430754 Tie, Cable / 7,6x360//7,6x338
1.6 1    51059685 Screw / M6 Attention! Self-tapping screw / cutting screw!
-------------- Use only self-tapping / cutting screws of the same
-------------- design.
-------------- Use self-tapping screw / cutting screw only once!
-------------- After removal insert/use a new screw.
-------------- Using a different screw will damage the thread,
-------------- insufficient connection stability.
2 1    51257721 Horn / 24V/335Hz
3 1    51238462 Cable, Control
3.60 1    ( 5 ) 51343175 Fuse / 2A/32V
3.70 2    ( 20 ) 51343179 Fuse / 10A/32V
3.280 1    28617530 Diode / 1N5408
3.300 4    50261773 Holder, Fuse
5 2    51141842 Copper bridge
6 2    28414890 Board, Terminal / 1-polig
7 1    51296863 Contactor / 24V 120A
8 1    51132730 Plate, Contactor rack
9 1    51146631 Cap / 4Pol
10 1    51095190 Bush / 2x5pol
11 1    50429260 Dummy Plug / 10pol
12 1    51130610 Bush / 16pol
13 1    51188818 Cable, Control
14 1    51060246 Cable, Power / Q1.2-X30.1
15 1    50250175 Fuse / 300A/32V
16 1    51042376 Cable, Power / 2M1.A1/2M1.A2-...
17 7    ( 20 ) 50430752 Tie, Cable / 4,6x200//4,8x186
19 1    51141839 Fan
20 1    51072774 Cable, Truck
21 1    50020312 Switch, Master
22 1    51037329 Cover
23 1    51037294 Handle
24 1    50024886 Plug
100 9    24203160 Screw / M8x12 bolting torque see service manual
101 4    24200720 Screw / M6x40 bolting torque see service manual
102 2    ( 50 ) 24403580 Screw / M4x8 bolting torque see service manual
103 1    51146923 Screw / M3x35 Pos. without illustration.
104 2    51098873 Screw / M6 bolting torque see service manual
105 2    51040032 Screw / M5x16 bolting torque see service manual
106 2    50059593 Screw / M5x12 bolting torque see service manual
107 1    24404290 Screw / M5x25 bolting torque see service manual
108 4    ( 50 ) 24401870 Screw / M4X10
200 13  26915614 Lock washer / 8,4/ Sperrzahn
201 4    00002895 Lock washer / 6,4/ Sperrzahn
202 6    50120559 Lock washer / 4,3/ Sperrzahn
300 4    ( 20 ) 25301090 Nut / M8 bolting torque see service manual
980 1    51263516 Drive control / F/H/L/Standard prog.
