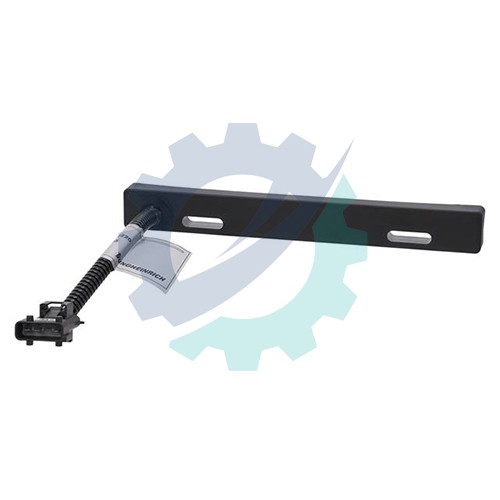

51315627 Jungheinrich sensor potentiometer

Used for:

DFG 425s 51078213 11.07 - 12.14 1
DFG 430s 51078214 11.07 - 12.14 1
DFG 435s 51078216 11.07 - 12.14 1
TFG 425s 51078217 11.07 - 12.14 1
TFG 430s 51078218 11.07 - 12.14 1
TFG 435s 51078219 11.07 - 12.14 1
EFG 425-430 51231602 4.12 - 12.14 1
2EP(C)5000-2EP(C)6500 51231606 4.12 - 12.14 1
EFG 535k-S50 51282973 10.13 - 12.14 1
2EPC 8000 - 2EP 11000 51282975 10.13 - 12.14 1
EFG 425-430 (US) 51334607 1.13 - 12.14 1
EFG 535k-S50 (US) 51334608 10.13 - 12.14 1
EFG 425-430/ S30 51340313 6.14 - 1
2EP(C)5000-2EP(C)6500 51340314 6.14 - 12.16 1
EFG 425-430/ S30 (US) 51340317 6.14 - 12.16 1
EFG 535k-S50 51340318 6.14 - 12.16 1
EFG 535k-S50 (US) 51340319 6.14 - 12.16 1
2EPC 8000 - 2EP 11000 51340320 6.14 - 12.16 1
2FBC 40 - 2FB55 51346205 10.13 - 6.14 1
2EPC 40 - 2EP 55 51346206 10.13 - 6.14 1
2FBC 40 - 2FB55 51361538 6.14 - 12.16 1
2EPC 40 - 2EP 55 51361539 6.14 - 12.16 1
DFG 316s 51381975 10.14 - 9.17 1
TFG 316s 51382000 10.14 - 9.17 1
DFG 320s 51382005 10.14 - 9.17 1
TFG 320s 51382007 10.14 - 9.17 1
DFG 425s 51382013 9.14 - 9.17 1
TFG 425s 51382014 9.14 - 9.17 1
DFG 430s 51382015 9.14 - 9.17 1
TFG 430s 51382016 9.14 - 9.17 1
DFG 435s 51382018 9.14 - 9.17 1
TFG 435s 51382019 9.14 - 9.17 1
EFG 535k-S50 51477875 12.15 - 1
EFG 535k-S50 (US) 51477876 12.15 - 1
2EPC 8000 - 2EP 11000 51477877 12.15 - 1
2FBC 40 - 2FB55 51477879 12.15 - 1
2EPC 40 - 2EP 55 51477880 12.15 - 1
DFG 3s 51560624 6.17 - 4.20 1
TFG 3s 51560625 6.17 - 4.20 1
DFG 4s 51560626 6.17 - 4.20 1
TFG 4s 51560627 6.17 - 4.20 1

Description:

Order in single parts Sensors, Wheel position
10 1    51268229 Bracket
20 1    51315627 Sensor
20.50 3    52024157 Pin, Contact
20.60 3    ( 25 ) 50127946 Seal
20.80 1    ( 20 ) 50256383 Plug / blind plug JPT-D5,6
20.100 1    50129595 Housing, Plug / 4 pol
20.110 1    50130114 Seal / 4-pol
20.150 0    05045178 Protective hose / PA sw Length required when ordering
30 1    05045187 Magnet
40 1    51276269 Shackle
50 3    00018823 Nut / M6
55 2    ( 50 ) 25501510 Washer / 6,4
70 4    51317587 Screw / M8X12,0-10.9
80 1    51268214 Bracket
90 1    51308870 Adapter / li
100 1    51308872 Adapter / re
110 2    51316593 Screw, Torx / M8
120 2    ( 20 ) 25303400 Nut / M8
