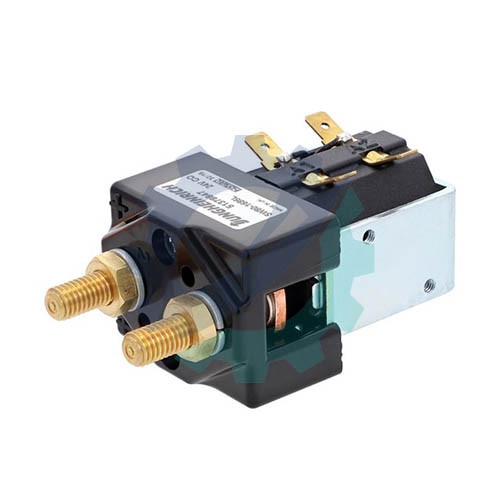

51378847 DC 24V Jungheinrich Contactor

Used for:

EJC 110n/112n 51157342 10.09 - 1.18 1
EJC 112n (NICHIYU) 51226657 1.11 - 2.20 1

Description:

51242748 Charger
10 1    51234930 Bracket
11 1    50434129 Bracket
30 1    51378847 Contactor
40 1    51169264 Cable, Power / 170mm/red/rot/rouge
50 1    51169266 Cable / 170mm
60 1    51233756 Charger / 24 V/ 30,0 A/ 230 V
100 1    51093052 Cable, Truck / 80A/MRC
110 1    51038722 Cable, Power
120 1    51197779 Cable, Control
130 1    51147311 Cable, Control
140 1    51059685 Screw / M6 Attention! Self-tapping screw / cutting screw!
-------------- Use only self-tapping / cutting screws of the same
-------------- design.
-------------- Use self-tapping screw / cutting screw only once!
-------------- After removal insert/use a new screw.
-------------- Using a different screw will damage the thread,
-------------- insufficient connection stability.
150 1    25600940 Lock washer
180 2    51186813 Connector, Male / Potentialsammelpunkt
190 1    50447190 Connector, Male
200 1    51062375 Bracket
210 1    28528600 Holder, Fuse
220 1    50446499 Fuse / 200A/32V Affects the following trucks:
-------------- EJE series 1 (VJ000600)
-------------- EJE series 1 US (VJ000650)
-------------- EJE series 2 (VJ000700)
-------------- EJE series 2 US (VJ000750)
-------------- EJE C20 (VJ000800)
-------------- The fuse must not be obstructed on these trucks,
-------------- as this could result in premature failure of the BF2
-------------- fuse.
-------------- Use the following Megafuse type:
-------------- 51100334 / fuse strip
230 1    51201444 Horn
320 1    50424094 Screw
340 4    ( 50 ) 24403580 Screw / M4x8
345 2    50059593 Screw / M5x12
350 4    50120559 Lock washer / 4,3/ Sperrzahn
360 3    ( 20 ) 24202420 Screw / M6X16
361 2    50035120 Screw
365 5    00002895 Lock washer / 6,4/ Sperrzahn
370 7    24203160 Screw / M8x12
372 5    ( 20 ) 25301090 Nut / M8
375 13  26915614 Lock washer / 8,4/ Sperrzahn
380 1    50440813 Label, El. Fuses
390 8    ( 20 ) 50430752 Tie, Cable / 4,6x200//4,8x186
395 1    50262417 Clamp
400 1    50273975 Gland, Cable
980 1    51089973 Drive control / AS2409iK/EJC/EJG BR1
