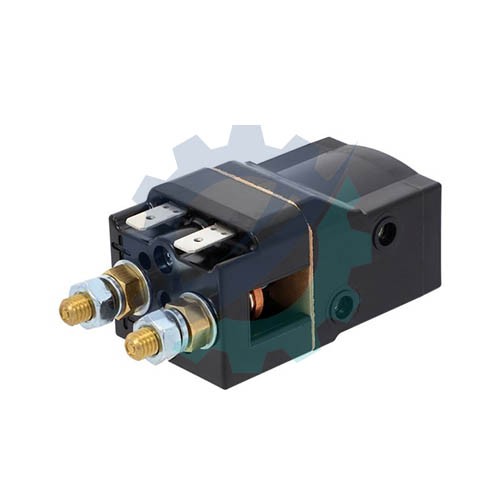

52002104 DC 24V Jungheinrich Contactor

Used for:

ETX-K 125/150 10004721 1.99 - 1.04 1
KMS 125 50119951 1.01 - 7.04 1
KMS 150 50119952 9.01 - 1.03 1
WA 13-15 MK 2 (STB) 50260626 12.97 - 12.04 1
WK 13-15 MK 2 (STB) 50260629 12.98 - 12.04 1
EFG 110-115 51157725 11.09 - 12.16 1
EFG 115 SP 51339359 11.09 - 1
EKX 410 52017693 7.03 - 12.12 1
EKX 513/515K S/F I 52022339 2.04 - 12.07 1

Description:

Order in single parts Fixed parts
10 1    51154926 Bracket / Ex;
10.10 1    05114441 Bracket
10.20 1    28414890 Board, Terminal / 1-polig
10.30 2    00000614 Washer / 8
10.35 1    ( 50 ) 00000025 Washer spring / A8
10.40 1    00002379 Nut / M8
10.50 1    00033284 Box, Fuse
10.60 1    00033280 Connector, Male
10.60.10 1    00033281 Connector, Male / Code 1-2
10.60.20 1    50011402 Connector, Male / Code 3-4
10.60.30 1    00033283 Connector, Male / Code 5-6
10.65 2    ( 20 ) 00018152 Socket
10.70 5    28528360 Lead, Jumper
10.80 1    52002104 Contactor
10.90 4    04621237 Screw Attention! Self-tapping screw / cutting screw!
-------------- Use only self-tapping / cutting screws of the same
-------------- design.
-------------- Use self-tapping screw / cutting screw only once!
-------------- After removal insert/use a new screw.
-------------- Using a different screw will damage the thread,
-------------- insufficient connection stability.
10.100 2    00018544 Screw
10.110 1    51064566 Kit Cable
20 2    05004211 Screw / M8x16
30 5    00002929 Tie, Cable / l=150
40 1    ( 20 ) 51343184 Fuse / 40A/32V
