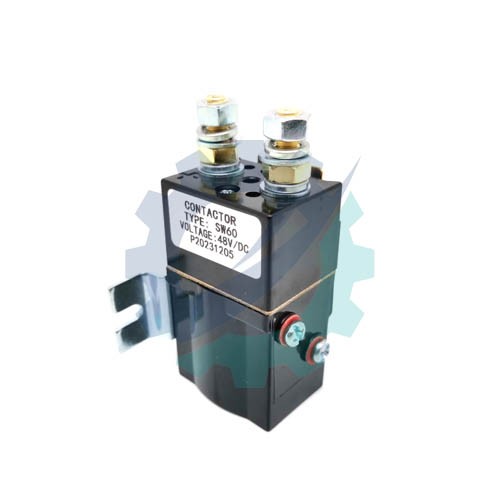

52018885 DC 48V Jungheinrich Contactor

Used for:

EZS 570 51095120 6.08 - 1
EFG 213 - 220 51100123 6.08 - 12.14 1
EFG 316 - 320 51100135 6.08 - 12.14 1
EFG 216KN 51139132 3.09 - 1.18 1
EFG 316N/320N 51139133 3.09 - 1.18 1
ESE 420/430 51148995 7.09 - 1
EP3000-EP4000 51171047 11.09 - 12.14 1
2ET2500-2ET4000 51171071 11.09 - 12.14 1
Reach trucks 51334593 7.13 - 1
EFG 213 - 220 (US) 51339358 11.09 - 12.14 1
EFG 213 - 220 51383843 9.14 - 12.16 1
2ET2500-2ET4000 51383844 9.14 - 12.16 1
EFG 213 - 220 (US) 51383845 9.14 - 12.16 1
EFG 316 - 320 51383846 9.14 - 12.16 1
EP3000-EP4000 51383847 9.14 - 12.16 1
EFG 316 - 320 (US) 51383848 9.14 - 12.16 1
EZW 515 51388394 1.15 - 1
EZS 570/ 580/ 590 51413276 4.15 - 1
EFG 316n/320n HELI 51573479 1.17 - 10.20 1
EFG 216kn HELI 51573482 1.17 - 10.20 1
EFG 216KN 51630471 1.18 - 10.20 1
EFG 316N/320N 51630474 1.18 - 10.20 1
EZS 570/ 580/ 590 (US) 51887734 4.15 - 1
EFG 213 - 220 52025920 8.04 - 1.09 1
LE 13 - 20 52025942 8.04 - 1.09 1
EFG 316 - 320 52025945 8.04 - 1.09 1
KE 16 - 20 52025946 8.04 - 1.09 1

Description:

Order in single parts Contactor rack
10 1    51108064 Cable, Control
20 1    51108962 Bracket
50 1    52018885 Contactor
60 2    52014870 Screw Attention! Self-tapping screw / cutting screw!
-------------- Use only self-tapping / cutting screws of the same
-------------- design.
-------------- Use self-tapping screw / cutting screw only once!
-------------- After removal insert/use a new screw.
-------------- Using a different screw will damage the thread,
-------------- insufficient connection stability.
70 2    ( 10 ) 27213410 Cap / M6
100 1    52040308 Holder, Fuse
110 2    51097606 Screw Attention! Self-tapping screw / cutting screw!
-------------- Use only self-tapping / cutting screws of the same
-------------- design.
-------------- Use self-tapping screw / cutting screw only once!
-------------- After removal insert/use a new screw.
-------------- Using a different screw will damage the thread,
-------------- insufficient connection stability.
120 1    51095298 Fuse / Streifen/63A/80V
130 4    52023381 Washer
140 2    52023290 Washer
150 2    52023288 Nut
160 2    52023226 Cover, Protection
200 1    50053995 Box, Fuse
210 2    26905110 Fuse
220 2    28528520 Fuse
230 1    50250456 Fuse
240 1    51097550 Fuse
250 3    28528360 Lead, Jumper
260 2    52014870 Screw Attention! Self-tapping screw / cutting screw!
-------------- Use only self-tapping / cutting screws of the same
-------------- design.
-------------- Use self-tapping screw / cutting screw only once!
-------------- After removal insert/use a new screw.
-------------- Using a different screw will damage the thread,
-------------- insufficient connection stability.
300 2    51097609 Screw Attention! Self-tapping screw / cutting screw!
-------------- Use only self-tapping / cutting screws of the same
-------------- design.
-------------- Use self-tapping screw / cutting screw only once!
-------------- After removal insert/use a new screw.
-------------- Using a different screw will damage the thread,
-------------- insufficient connection stability.
310 1    26916366 Tie, Cable
