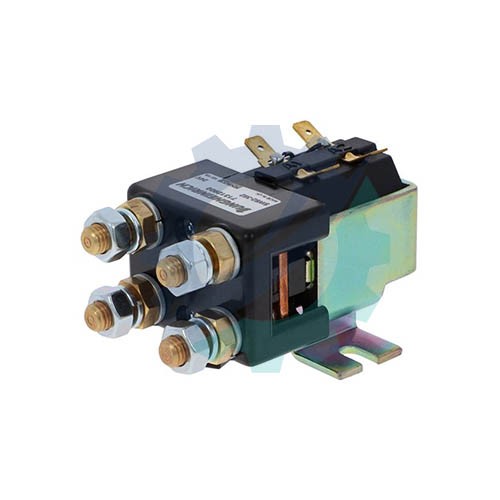

71312900 DC 24V Jungheinrich Contactor

Used for:

AM 180 C (MIC) 10003809 10.96 - 1

Description:

Order in single parts Contactor rack / A
1 1    50013583 Contactor rack
1.1 1    71313570 Plate, Contactor rack
1.2 1    71313720 Angle
1.3 3    25600930 Washer spring / A8
1.4 2    ( 10 ) 50109614 Fuse / 0,5-1,0
1.5 1    71302870 Fuse
1.6 1    71312950 Holder, Fuse
1.7 3    71314530 Washer
1.8 1    28417820 Cap Housing / MATE-N-LOK; 15pol
1.9 1    71313580 Switch, Push-button
1.10 2    71312920 Shunt
1.11 5    71312930 Shunt
1.12 2    71312900 Relay
1.12.1 2    71312910 Kit, Contact
1.13 3    71804840 Contactor
1.13.1 3    71804540 Kit, Contact
1.14 2    71302930 Washer
1.15 2    71302920 Nut
1.16 2    71313680 Screw
1.17 1    71312890 Circuit board
1.18 2    71342950 Resistor
1.19 5    27813890 Screw
1.20 15   ( 50 ) 25300970 Nut / M6
1.21 11   ( 50 ) 25501510 Washer / 6,4
1.22 4    71304090 Bracket
1.23 12  71312490 Nut
1.24 3    71304150 Insulator
1.25 3    71309140 Nut
1.26 3    71313740 Stud, Threaded
1.27 1    50264282 Connecting element
1.28 3    71304320 Nut
1.29 5    71309130 Washer
1.30 2    71309140 Nut
1.31 1    71310410 Screw
1.32 1    71313600 Label, El. Components
1.33 1    71313610 Label, El. Components
1.34 1    71313620 Label, El. Components
1.35 1    71313630 Label, El. Components
1.36 1    71313670 Label, El. Components
1.37 1    71313640 Label, El. Components
1.38 1    71313650 Label, El. Components
1.39 1    71313660 Label, El. Components
1.40 1    71202420 Horn
1.41 1    71804620 Diode
1.42 4    71341980 Diode
1.43 1    71313590 Cable
1.44 3    71307360 Washer
1.45 8    ( 10 ) 24201660 Screw / M6x12
1.46 3    71313750 Insulator
1.47 3    ( 20 ) 25301090 Nut / M8
1.48 2    71313710 Shunt Pos. without illustration.
1.49 3    ( 20 ) 25303400 Nut / M8
50 1    50013584 Cable Pos. without illustration.
50.1 1    50013585 Cable
50.2 1    50013586 Cable
